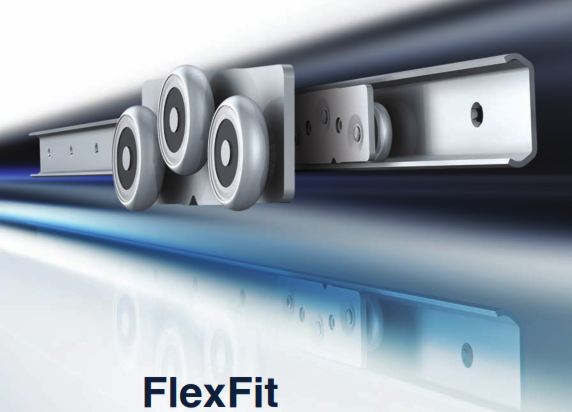

FlexFit Linear Modular System


FlexFit is a modular linear rail system which uses stainless steel carriers with a choice of either stainless steel or bright zinc plated steel rails in a selection of sizes. Carriers are supplied pre-set ready for immediate use.

FlexFit 1537 and 1529 rails are available in lengths stocked to 2,400mm complete with pre-drilled & c'sk mounting holes ready for use. The carriers are supplied with threaded mounting holes and have a choice of 60-100kg load capacities,dependant on rail selection.There is no limit to how many are fitted to each rail as the carriers work independently. The carriers are available in 3 and 5 bearing format as standard.

The FlexFit system is tested to 100,000m travel with a 50 and 80kg load under normal conditions and the carriers show no sign of play throughout the service life.

The rails are supplied in zinc plated steel or 430 (1.4016) stainless (inox). The carriers are supplied only in stainless steel grade 304 (1.4301). There are no plastic parts used in this system, so it is suitable for high temperature environments. Unlike other systems, the rails can have customer specific mounting options and hole patterns subject to minimum order quantities. Any amount of carriers can be fitted per rail. The bearings are sealed and pre-lubricated.

1537 & 1529 Rail & Carriers are purchased separately and delivered factory fitted. FlexFit is now stocked and available on a same day despatch, in both steel and stainless formats.

Download Datasheet
