Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 5 - 10 and get 10% off
- Buy 11 - 20 and get 15% off
- Buy 21 - 50 and get 20% off
- Buy 51 or above and get 25% off

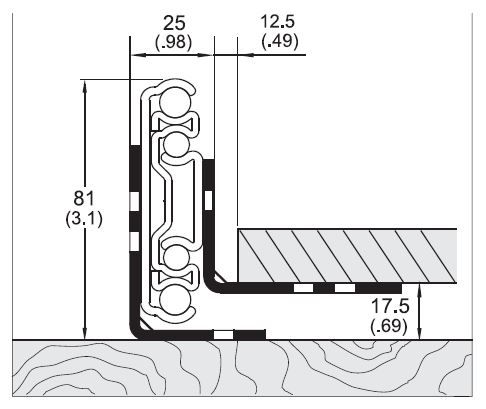

Bracket Configuration A
Supplied as a complete LH & RH set
Container Red fully locking slides are now supplied with a flexible bracket system referred to as CONBAS, allowing them to be used as a highly economical base mount. Supplied with four bracket options fitted to the slides, this is a highly flexible system allowing floor mount, bottom mount or a combination of both.
The brackets are made in four length options which are interchangeable to support all Container Slide lengths up to 1524mm. The brackets can also be purchased separately with a fastenings kit for customer fitting. We have four bracket configurations for mounting: A, B C & D. Each allows the fitter to choose which way to mount the slides. The brackets can be removed and re-positioned as bolts & nuts are used to secure them, not rivets.
CONBAS Mount A provides a bracketry configuration to floor mount the slide in the closed position when space is limited. The inner beam bracket is mounted to support a drawer or cradle underneath. The slides are supplied as a LH & RH pair with brackets fully fitted and ready to use. For load capacity, datasheets and 3D files, please refer to the 4005.CONRED Container Red slides.
4005.CONBAS slides are supplied from stock, across all lengths, with fast lead-times.
